Processing of ready-to-use syringes, vials and cartridges in the nest

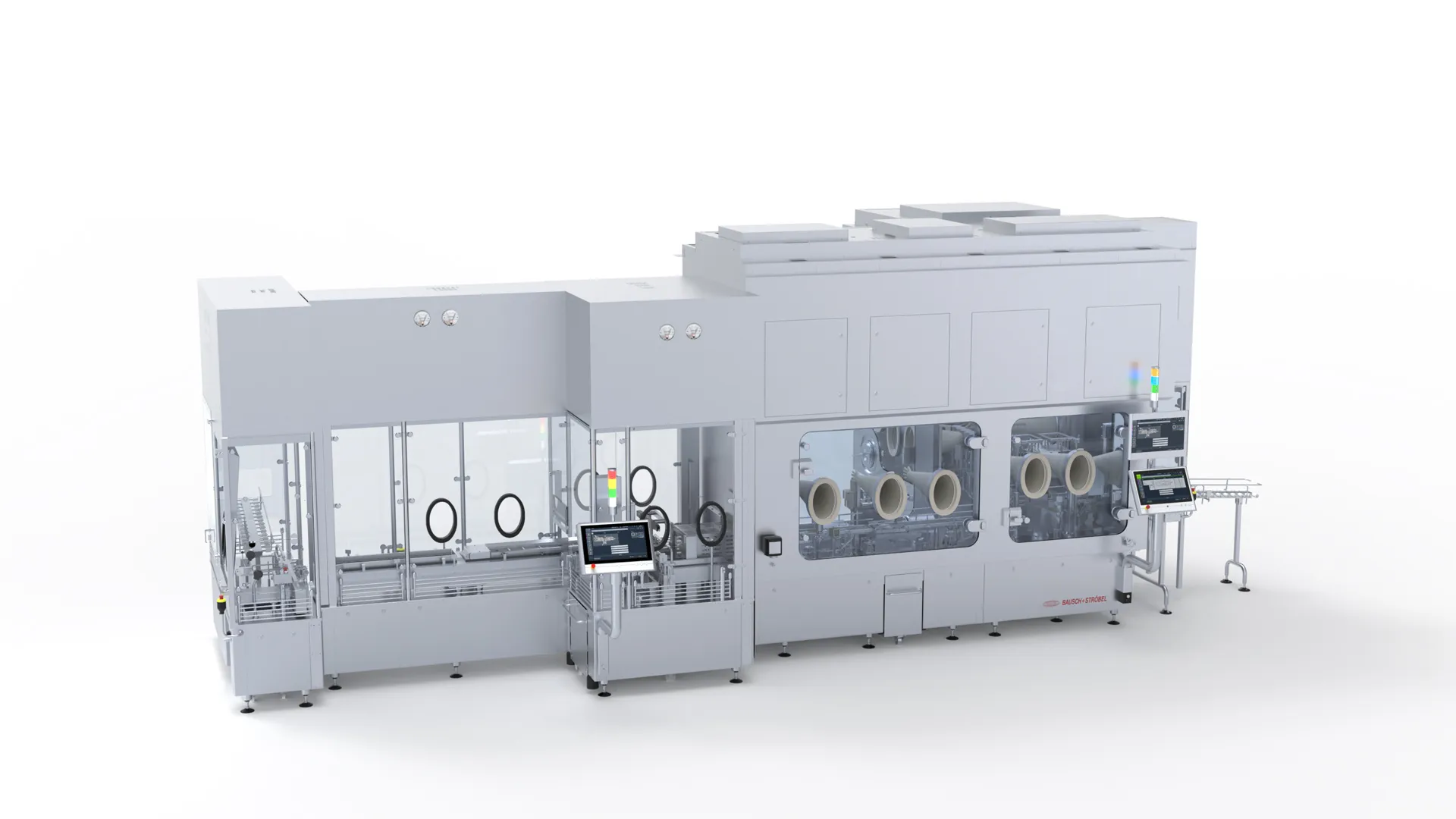

Nest filling machines

As a machine manufacturer for the processing of ready-to-use packaging (RTU), we offer you perfect solutions in the pharmaceutical process. With decades of experience in semi-automatic and fully automatic systems, both in low and high-capacity production, we set standards worldwide.

Our continuous technological development guarantees maximum precision in filling and closing processes, gentle object transport without glass-to-metal contact and maximum flexibility thanks to a range of different high-precision filling systems.

Your future in pharmaceutical production starts with us. Rely on our proven expertise and state-of-the-art technology to meet the highest standards. Your pharmaceutical production – more efficient and future-orientated than ever before.

Leading pharmaceutical companies trust us, as evident from our long-standing partnerships. Benefit from the experience we have gained from more than 15,000 systems installed worldwide. With our global network, we are a strong and reliable partner.

Ready-to-use syringes, vials and cartridges in the nest

Technical specifications

Performance

60.000

Objects per hour

Syringes

0.5-50 ml

Processing range

Cartridges

1.5-20 ml

Processing range

Vials

2R-50R

Processing range

Features

Solutions for safe and reliable filling of RTU syringes, vials and cartridges

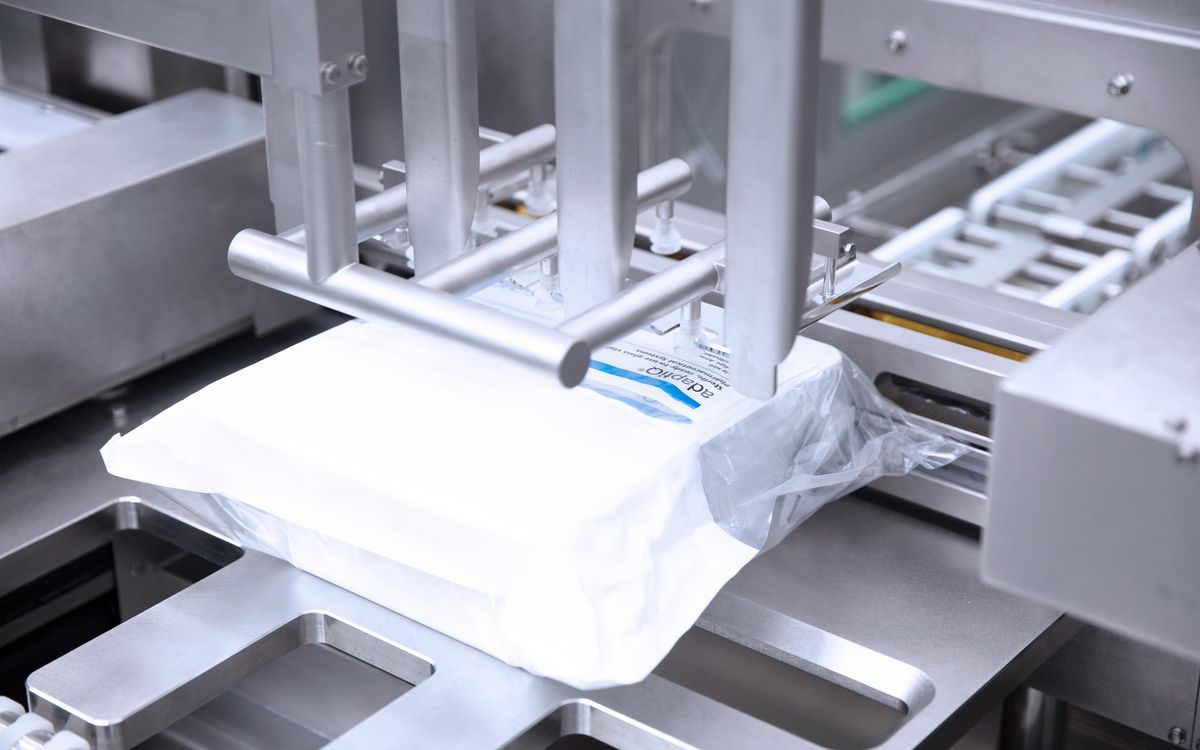

NTT process

The no-touch transfer (NTT) ensures the GMP-compliant introduction of pre-sterilised packaging materials in double bags into the class A area. Additional procedures such as disinfection or bio-decontamination are no longer required when introducing the product into the aseptic zone. The NTT process is fully compliant with EU GMP Annex 1 and is based on the principles of quality risk management in accordance with ICH Q9.

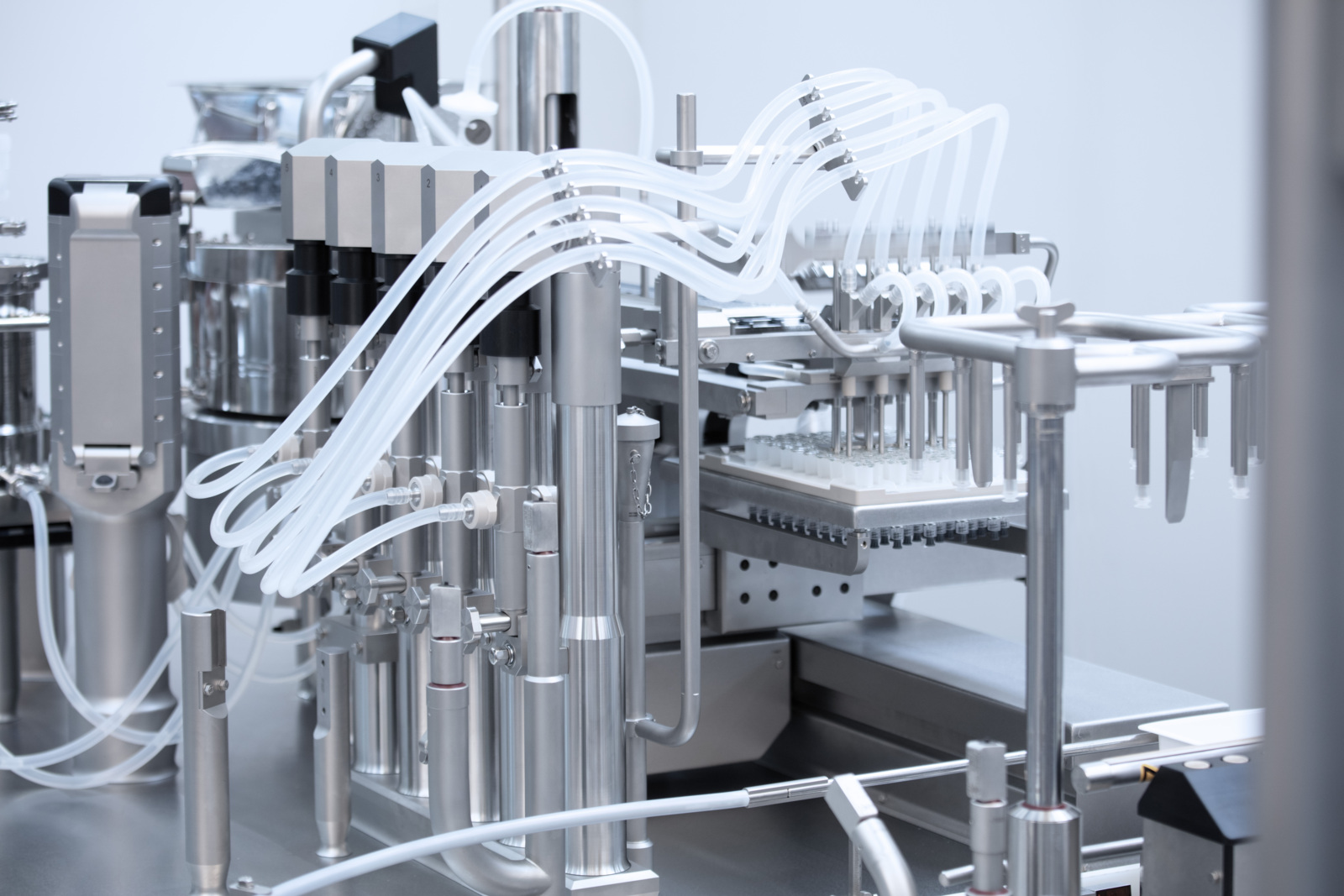

Dosing system

A suitable dosing system with maximum accuracy is available for every product – whether water-like or highly viscous: Rotary piston pump, peristaltic pump or time-pressure dosing. For optimum filling results, vacuum-assisted filling and vacuum-assisted closing can also be added. Adjustable gas flushing during filling and closing is also possible.

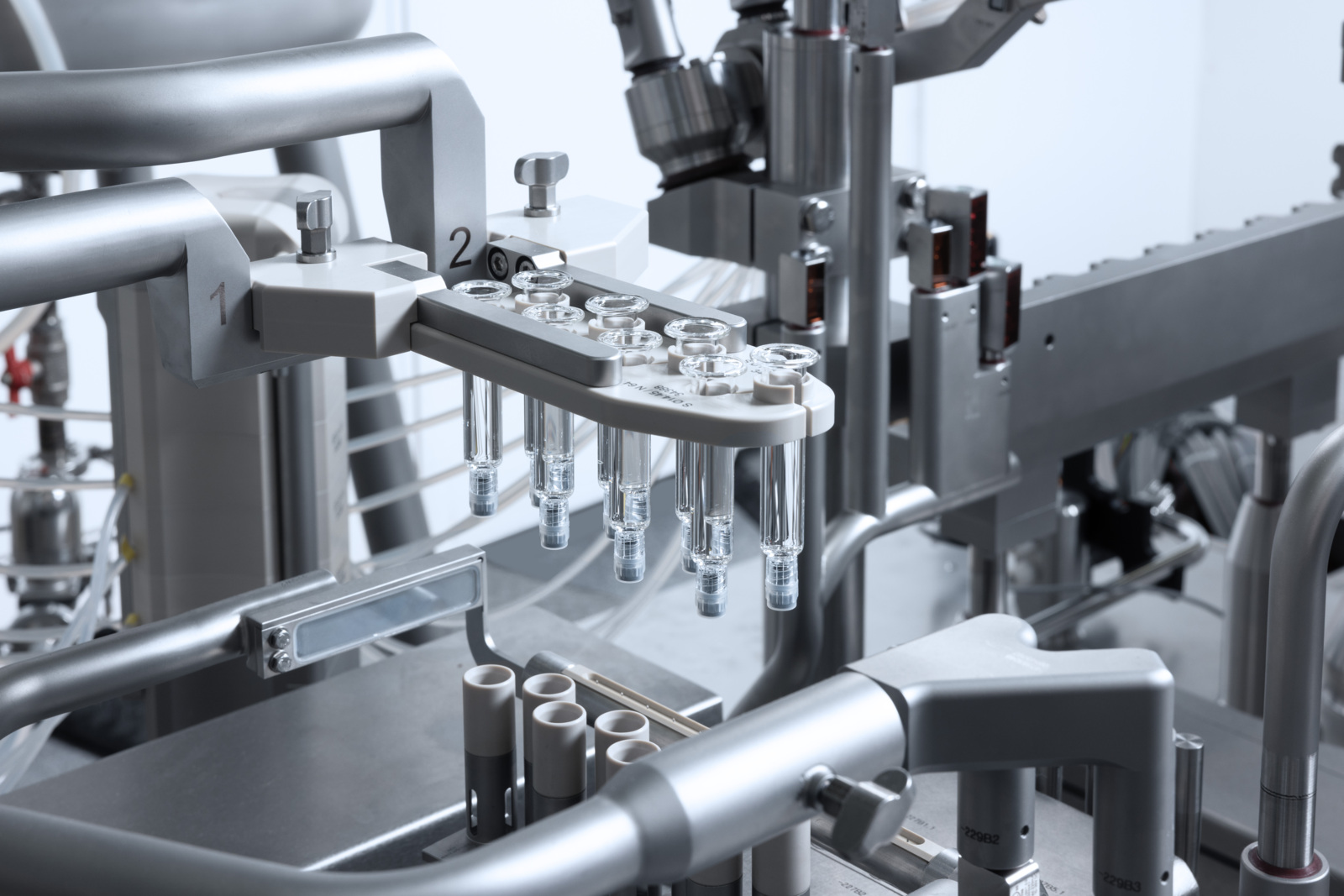

IPC process

The fully automatic statistical in-process control (IPC) checks the dosing quantity of the objects during the filling and closing process. Automatic readjustment of the dosing quantity in the event of under- and overdosing guarantees the highest filling quality.

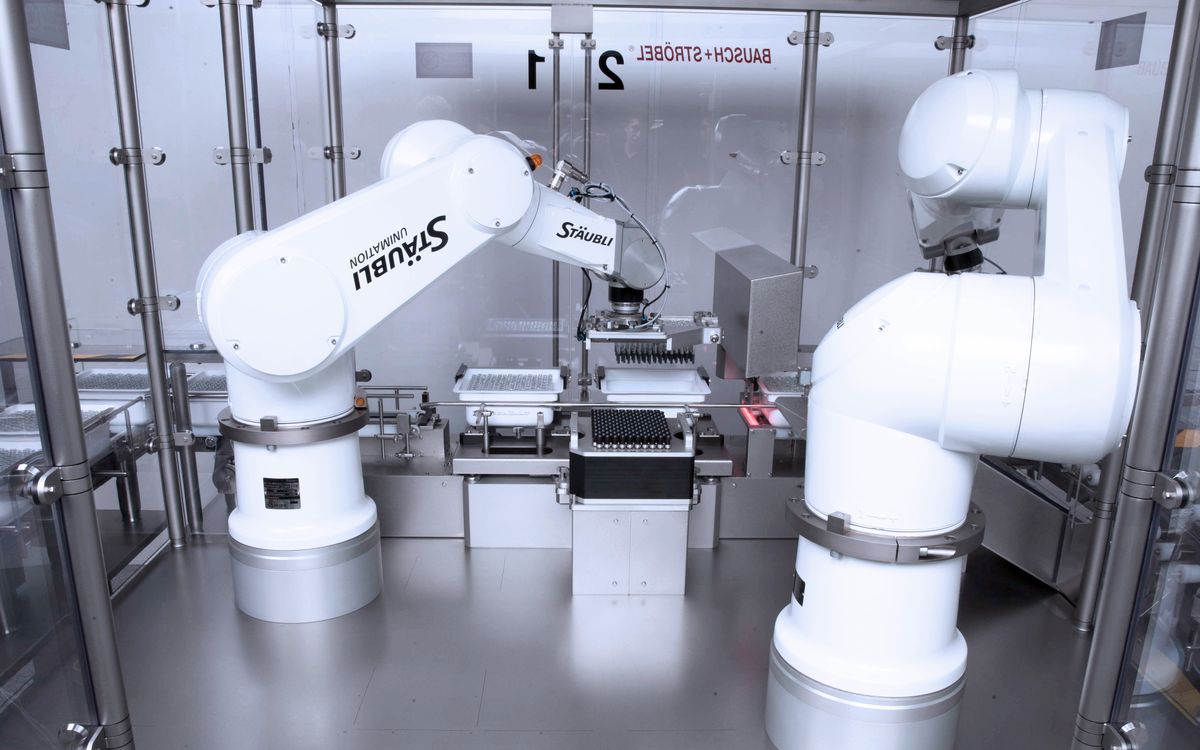

Maximum process reliability

To increase process reliability, camera systems can be integrated to check the stopper height for syringes and cartridges. Poorly positioned stoppers can also be ejected fully automatically, minimizing the need for manual intervention.

Ready-to-use syringes, vials and cartridges in the nest

Our portfolio for your pharmaceutical production

Output up to 6,000 objects/h.

Output up to 6,000 - 24,000 objects/h.

Output up to 24,000 - 60,000 objects/h.

RTU platforms

Our solutions for flexible processing of RTU packaging materials

System solution with efficiency and performance.

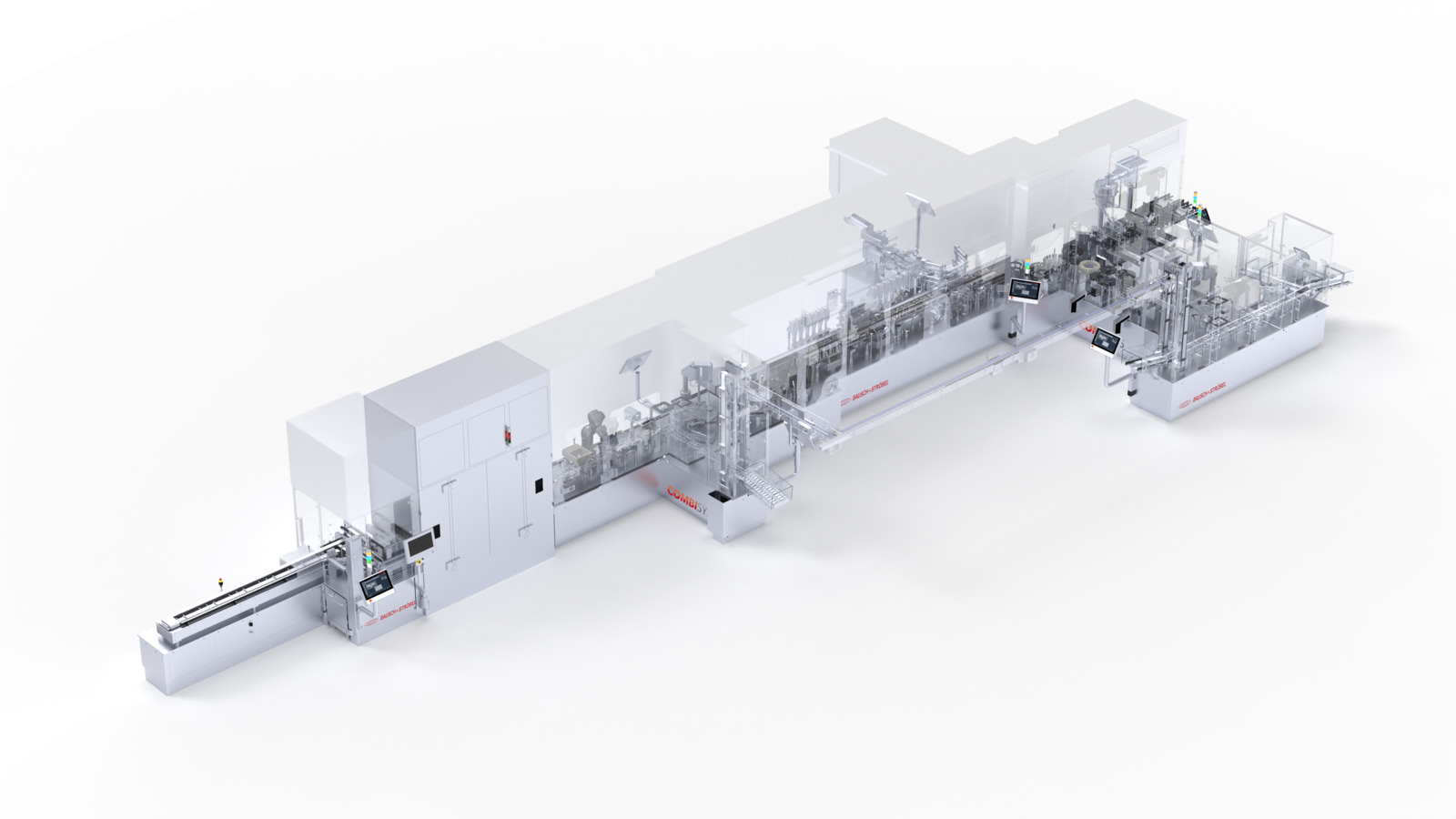

CombiSys

CombiSys is an ideal solution for CDMOs and pharmaceutical manufacturers who require a high degree of flexibility and for whom the scalability of the machines used is a competitive differentiator. With this solution, different packaging materials can be processed on a single platform – with an output of up to 30,000 objects per hour and 100 % in-process control (IPC).

CombiSys

Innovative. Flexible. Efficient.

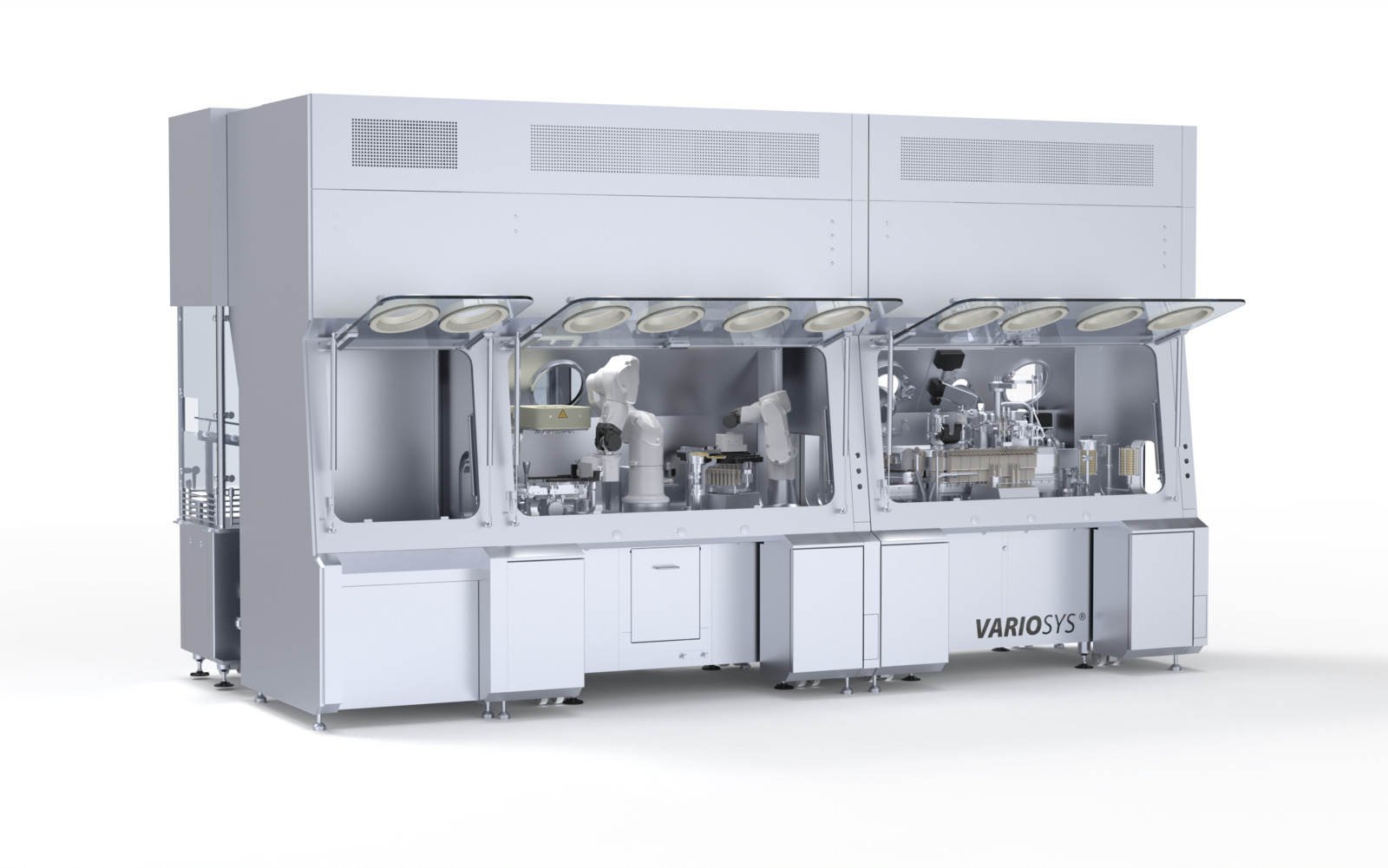

VarioSys

The innovative and highly flexible VarioSys® production system for biotechnological products and pharmaceuticals essentially consists of two components: an isolator system from SKAN and customised machine modules from Bausch+Ströbel. The system is designed in such a way that the production is made extremely flexible by exchanging modules.

VarioSys

Gloveless filling machine.

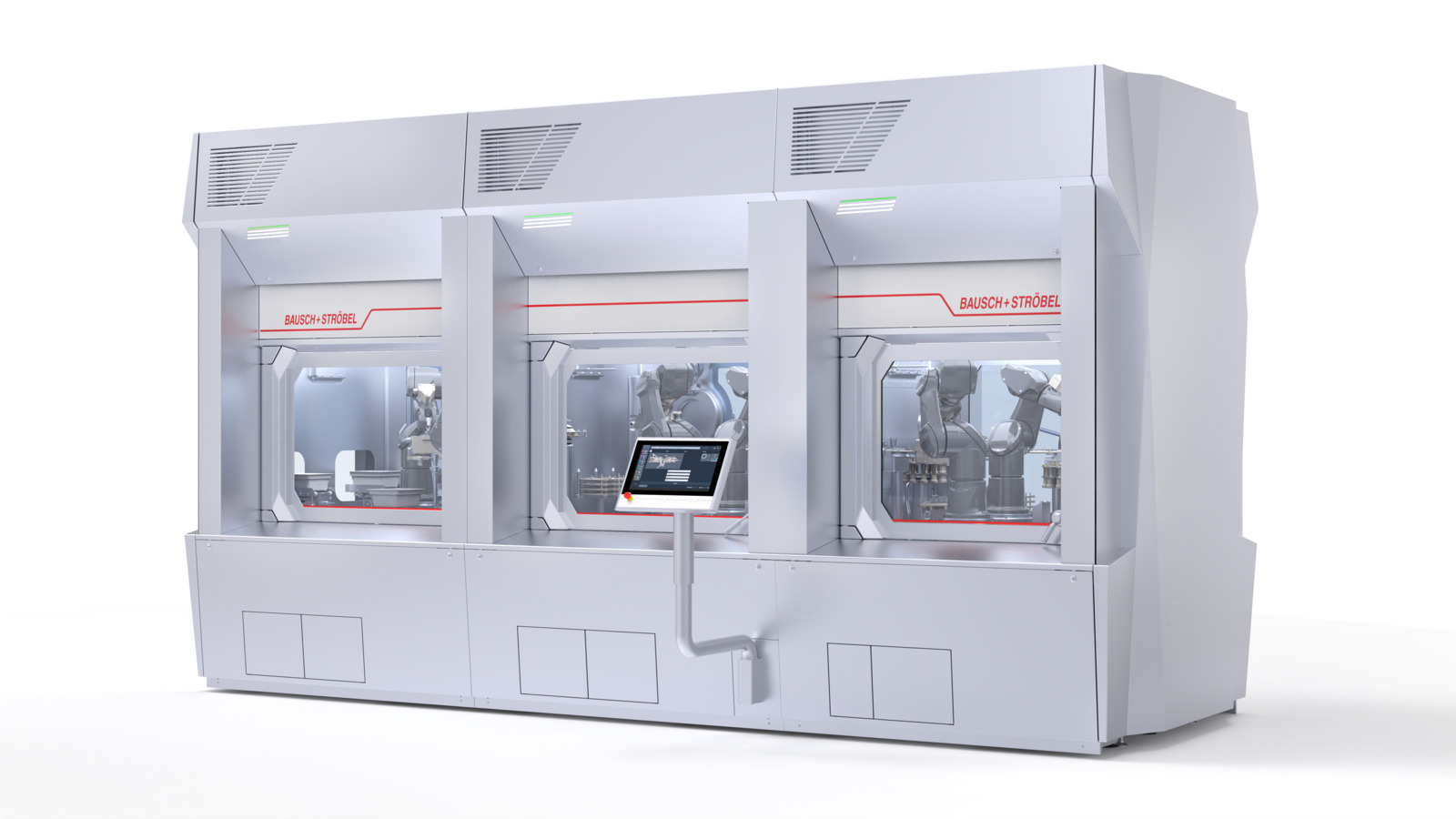

GENEX

GENEX is the latest in fully integrated automation. Precision automation can demonstrably lead to better and safer results than relying on human intervention. GENEX therefore enables efficient production while maximising process and production reliability.

GENEX

Integrated solutions

A safe route from the process to the patient

Genuine production reliability builds trust, quality and sustainable success. It is created by the harmonised interaction of man, machine and process, not by isolated technologies.

Discover the advantages of integrated solutions

Requirements and solutions

Annex 1 at a glance: What it means and our solutions

As a solution provider of high-quality filling systems, we develop technologies that are specifically designed to meet these requirements. With intelligent automation, sophisticated design and technical precision, we combine regulatory safety with economic efficiency.

Annex 1 at a glance Annex 1: Our solutions

Annex 1 at a glance: What it means and our solutions
